Rooftop Walkway
OVERVIEW

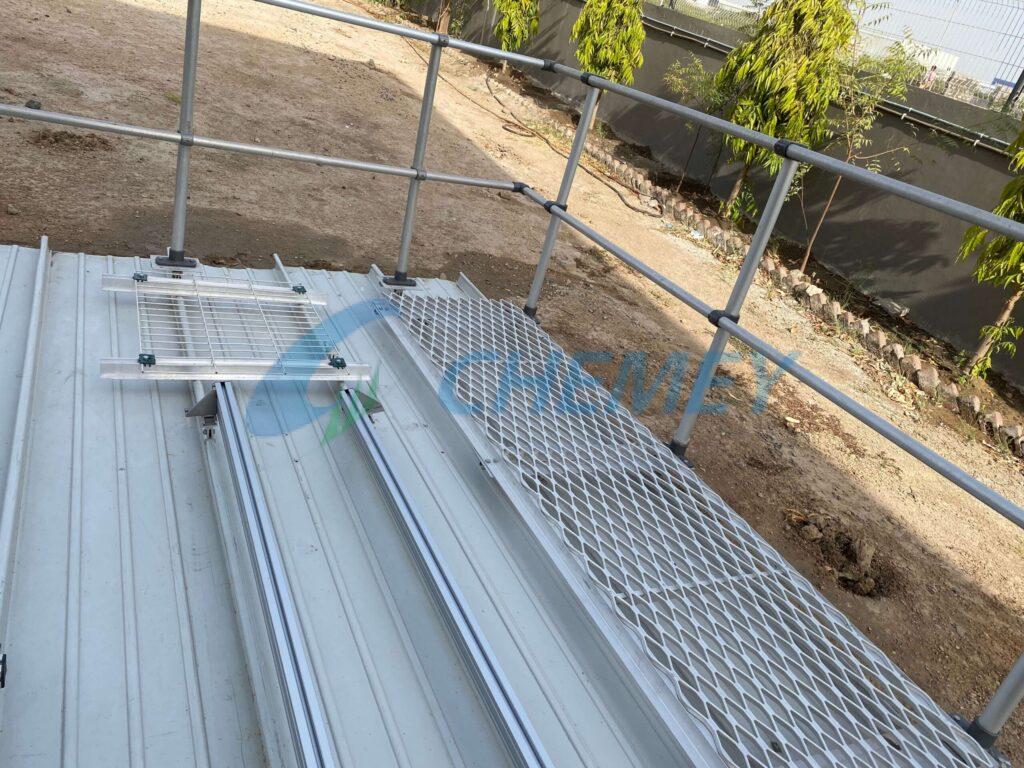

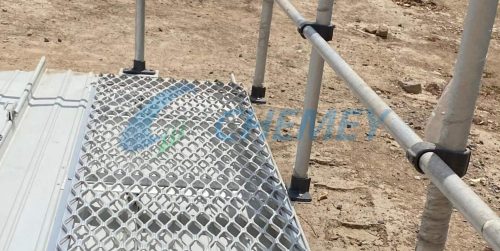

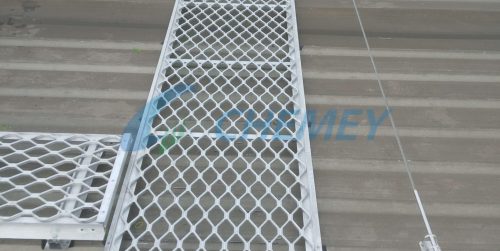

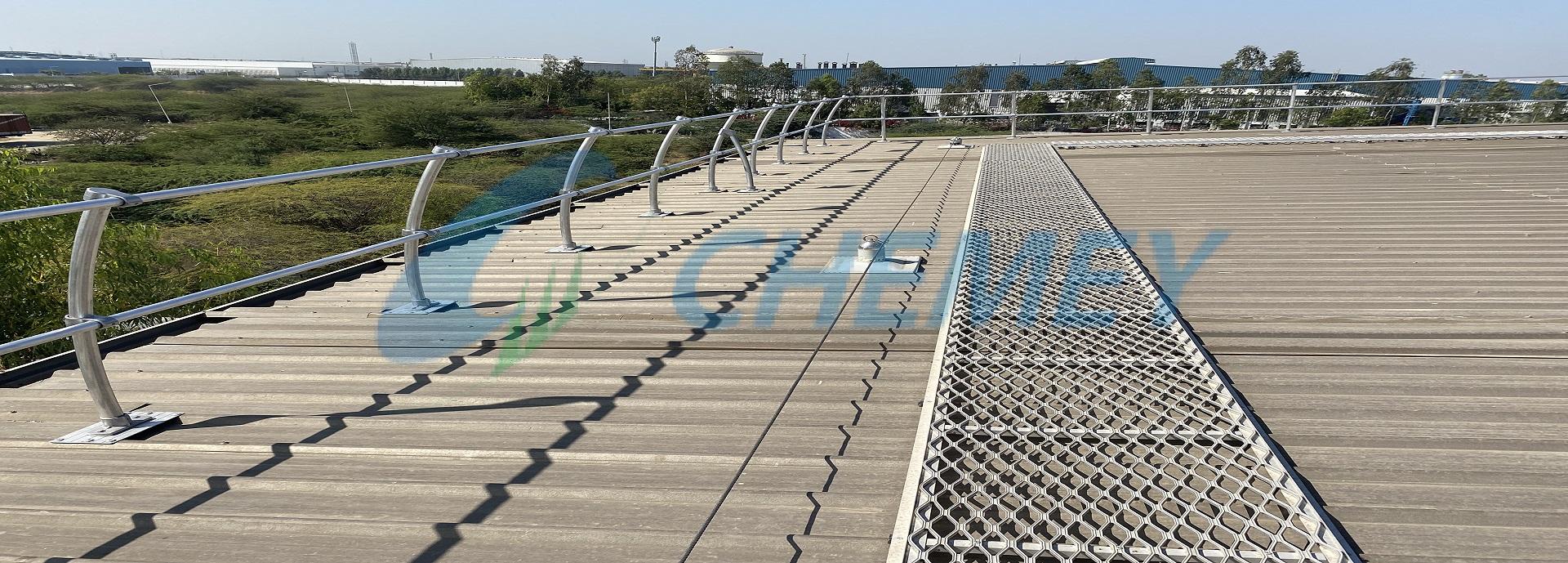

Aluminum walkway EnduPlank

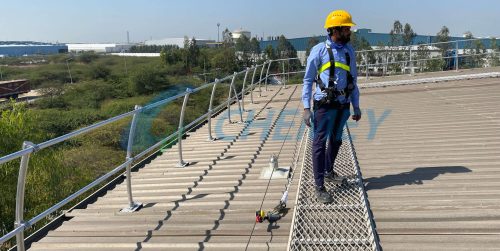

Leading roof walkway system that has been trusted in roof access strategies. Roof walkways provide a delineated access route that restricts workers to safe zones when working at height on the roof. Walkways provide traction for users to prevent slips and trips but also work to protect the roof surface from foot traffic.
In rooftop areas—where regular access may be required for solar panel maintenance, plant inspection, air quality monitoring, roof light cleaning, etc.— EnduPlank distributes the load evenly onto the roof and thus reduces the wear and tear on the roofing system itself.
BENEFITS
- Compatibility
Designed to work with all major roof types & integrates easily with either guardrails or lifeline systems. - Durability
Lifespan in excess of 25 years. - Minimal componentry
Quick and easy to install.
KEY FEATURES
- Corrosion resistant

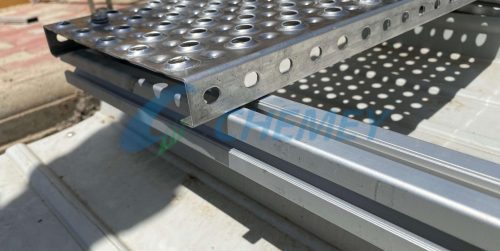

The Solar Roof Top walkway is manufactured from aluminum 13 mm grating and structural extrusion with stainless steel fixings and fasteners.. - No Welding
Made in standard modules. It can be installed on-site without any welding. - Roof Angles up to 25 degrees

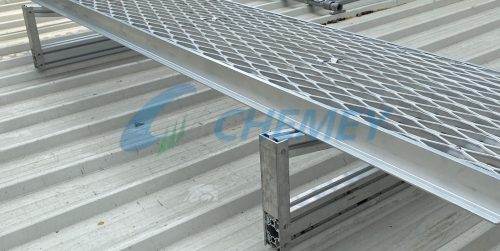

We offer slope correction brackets for walkway systems to adapt for roof angles from 0 to 25 degrees.
SERVICES
We offer full design and installation services that include a complete on-site survey. Also, we can produce comprehensive shop drawings to help you incorporate them into project drawings to visualize the result. With our detailed input, you can be confident that your project is professionally managed and that all safety concerns and standards are addressed to your satisfaction.
Alternatively, you can procure and install most of our safety systems yourself with our easy-to-follow instructions. Offsite support is always available and starts with a call to our knowledgeable sales support team!
COMPLIANCE STANDARDS
- The bespoke/prefabricated walkway Meets the standard
- Prefabricated Accessory EN516 – Class 1-C
- OSHA
- Anti-slip walkway
EnduPlank walkway has slip Resistant surface with good coefficient of friction
MODELS
- EnduPlank ENP 413 – 410 mm wide X 4500 mm long
- EnduPlank ENP 613 – 610 mm wide x 4800 mm long
- EnduPlank ENP 813 – 810 mm wide X 4500 mm Long
FAQs
What are the advantages of aluminum walkway over FRP walkway or grating?
Compared with FRP grating, aluminum grating is lightweight, has better corrosion resistance performance, and is non-sparking. It helps to provide safe, secure footing for many applications, ranging from trenches to decking. It can be easily cleaned and does not absorb bacteria-sustaining particles.
FRP grating becomes brittle due to long sunlight exposure on rooftop and are not suitable for impact load due to material characteristics.
What is a span of walkway for load capacity ?
The distance between points of the walkway supports the direction of the walk or bearing bars.
Can we install Railing on only one sider or on Both side of the walkway?
Yes EnduPlank solar rooftop walkway system can be designed with backup support to install railing as desired.
