Aluminium Scaffolding Tower
OVERVIEW
Lightweight Aluminum Scaffolding Access Towers are the perfect solution for safe and easy access to different levels of a building or structure. Our access towers are designed and manufactured using state-of-the-art technology and structural-grade Aluminum, ensuring a safe and sturdy platform for any construction or industrial application. Our stairway scaffolding can be easily set up with staircases, bridges, and more with various frame options.and more with various frame options.
BENEFITS
- LIGHTER THAN STEEL Aluminum Mobile Scaffolding is considerably lighter than steel. It’s easier to load, transport, and erect than steel. It can also potentially reduce the need for pricey lifting gear, as much of the lifting can be done by hand.
- EXCELLENT STRENGTH-TO-WEIGHT RATIOBecause aluminum has a much higher strength-to-weight ratio. Lighter weight and equal strength are clearly advantageous, and this is possible when using an Aluminum Tower Scaffolding.
- SUPERIOR MANOEUVRABILITYManeuverability is always something to strive for on-site; the better it is, the faster and more effectively it can be completed. As being lightweight, ease of movement and transportation from the point of view of a site worker reduces stress and saves energy.
- LONG SERVICE LIFE Any scratches below the surface of aluminium quickly form a thin oxide layer, blocking further corrosion. This means that any surface damage effectively protects itself, as long as the damage isn’t structural.
KEY FEATURES
- Rigid and robust full-welded construction
- Internal angled stairway for quick and frequent manpower movement.
- Ribbed rung tubing for increased grip.
- Structural Aluminum Grade
- Platform: Aluminium or of damp proof multi-layer glued plywood with phenolic resin coating with slip-resistant surface.
COMPLIANCE STANDARDS
- Safety certification BS EN1004:2004
MODELS

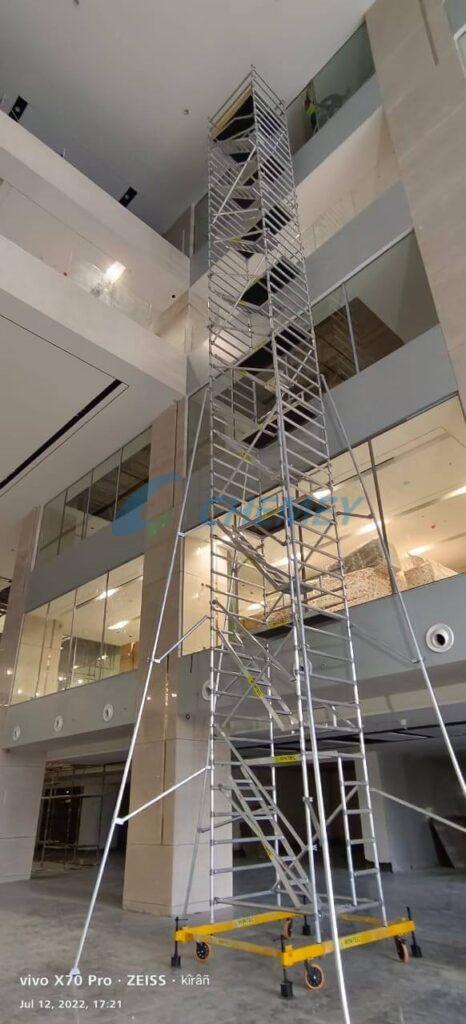

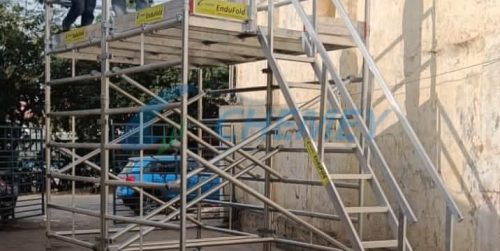

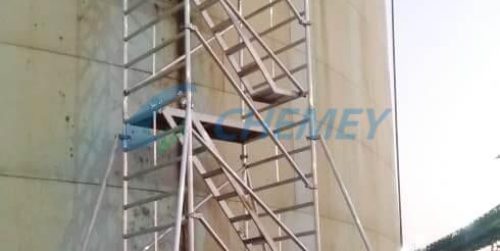

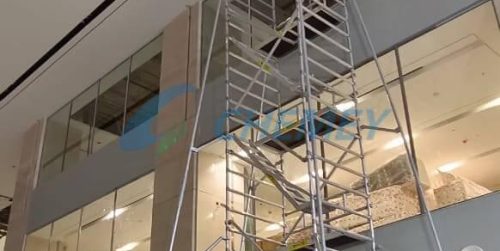

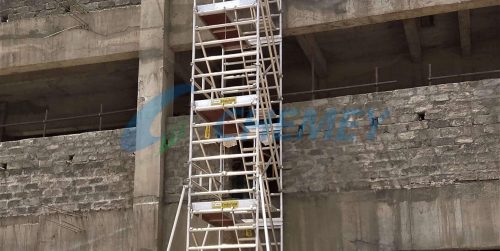

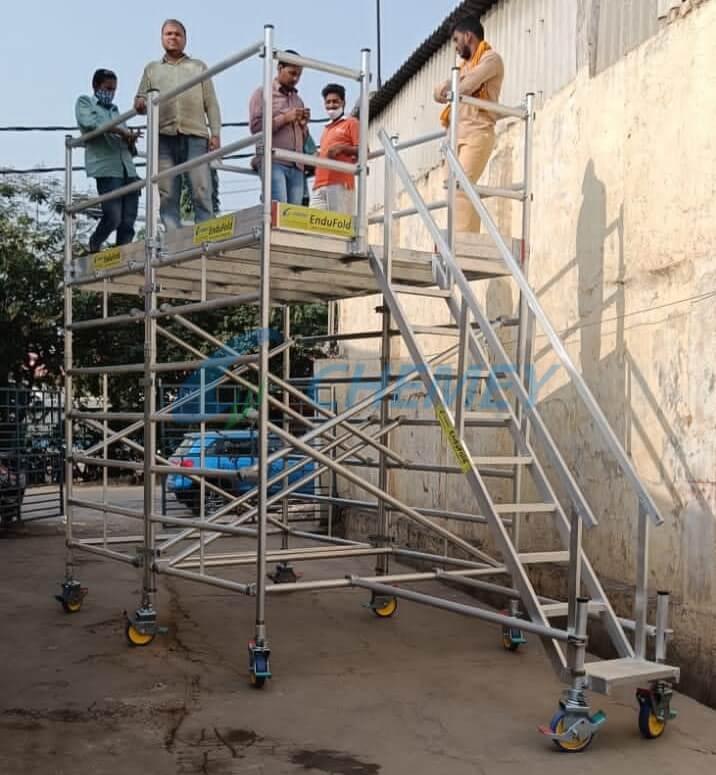

- Aluminium Scaffold Tower with Stairway
- Scaffolding width: 1.35 meter X length: 1.80 & 2.0 meter
- Working heights can be extended from 4.0 to max. 12.35 meter with standard parts
- Comfortable entry into the scaffolding from outside through the wide entry frame stairways with 100 mm deep, non-slip tread surfaces and entry platform
- 200 kg/m loading capacity, i.e., Depending on platform size max. 560 kg
- The non-slip platform with a large trap door and solid platform rails with toe guard confirms the industrial standards.
- The max. platform heights are limited based on outdoor or enclosed areas of application.

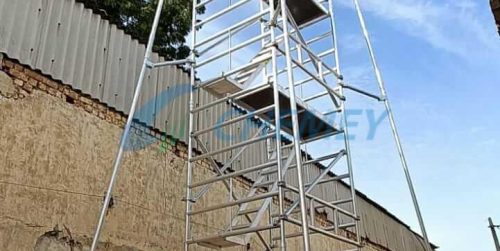

- Stabilizers are a standard part of supply in working heights above 6 meters.

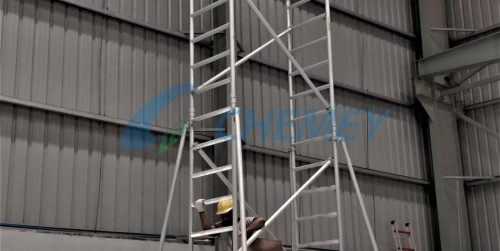

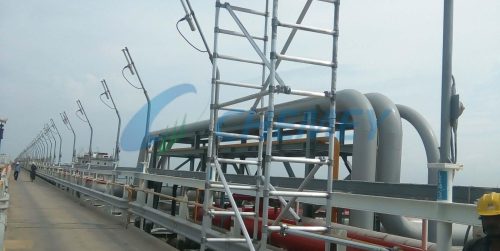

- Mobile Scaffold Towers with Ladder Frame
- Scaffolding width: 0.75-meter X length: 1.80-meter, 2.00 meter
- Working heights can be extended from 2.50 meters to max. 10 meters with standard parts
- 200 kg/m2 loading capacity
- The non-slip platform, with a trap door and solid platform rails with toe guards, confirms the industrial standards.
- The non-slip platform with a large trap door and solid platform rails with toe guard confirms the industrial standards.
- The max. platform heights are limited based on outdoor or enclosed areas of application.
- Stabilizers are a standard part of supply in working heights above 6 meters.
